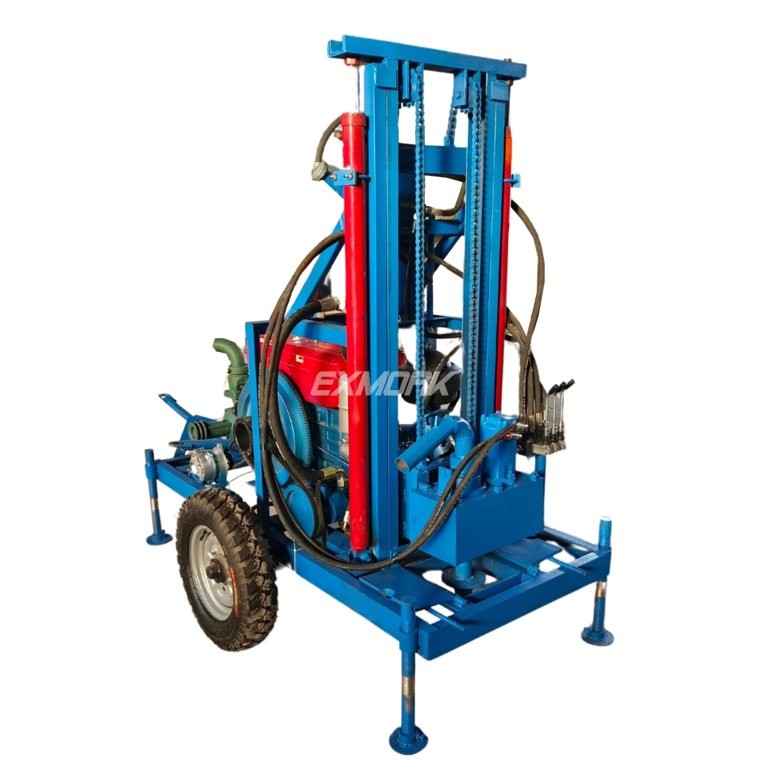

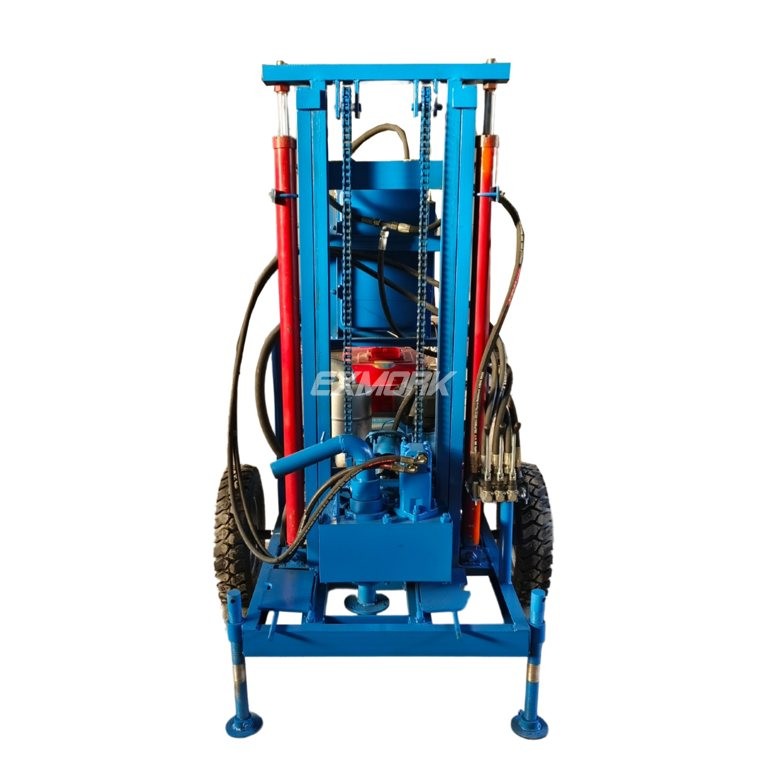

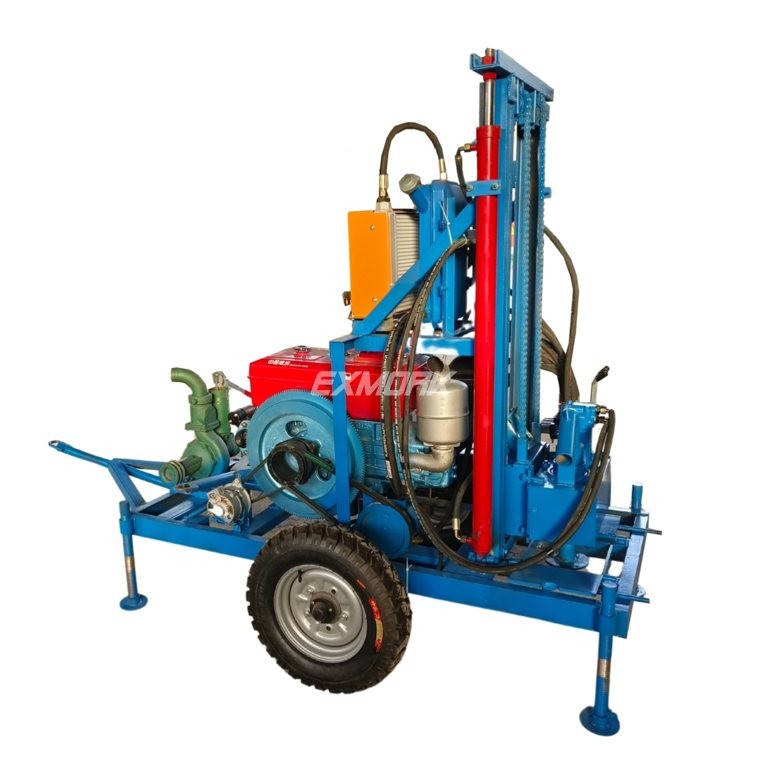

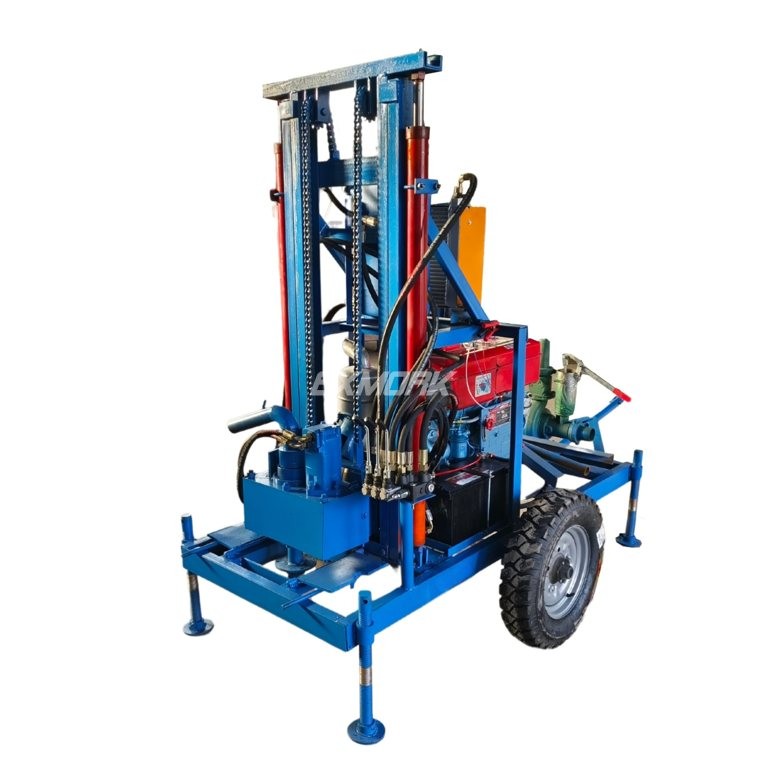

HF300D water well drilling rig

Exmork HF300D is a compact hydraulic water well drilling rig . With a durable diesel engine and advanced hydraulic technology, it excels in various drilling applications. Its lightweight design allows for easy transport and maneuverability, making it ideal for construction, water well drilling, and geotechnical projects.

The advantages of Exmork small drilling rigs include:

1. Flexibility: Small drilling rigs are small in size and easy to operate in small spaces or complex terrains.

2. Efficiency: Able to drill quickly, reduce construction time and improve work efficiency.

3. Economical: Compared with large drilling equipment, it has lower maintenance costs and is suitable for small-scale projects.

4. Easy to transport: The lightweight design makes transportation and relocation easier.

5. Versatility: It can be used for a variety of drilling needs, such as water wells, geothermal wells, geological exploration, etc.

6. Easy to operate: Equipped with a user-friendly hydraulic control system, it is convenient for operators to use.

Model:	HF300D-80	HF300D-100	HF300D-120	HF300D-150
Max Well Diameter:	300mm	300mm	300mm	300mm
Max Depth:	80m	100m	120m	150m
Working Voltage:	25HP Diesel engine
Drilling pipe length:	1600mm	1600mm	1600mm	1600mm
Drilling pipe diameter:	51mm	51mm	51mm	51mm
Driving mode:	Hydraulic motors
Rod change method	Full automatic screw thread
Drilling method:	Positive circulation and rotary type
Drilling machine overall dimension:	18008001640mm
