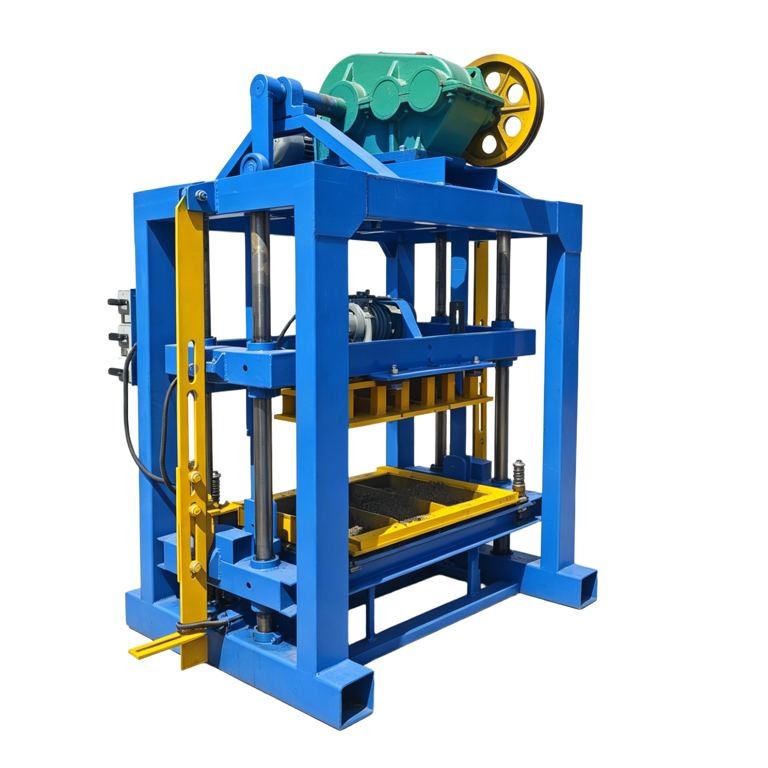

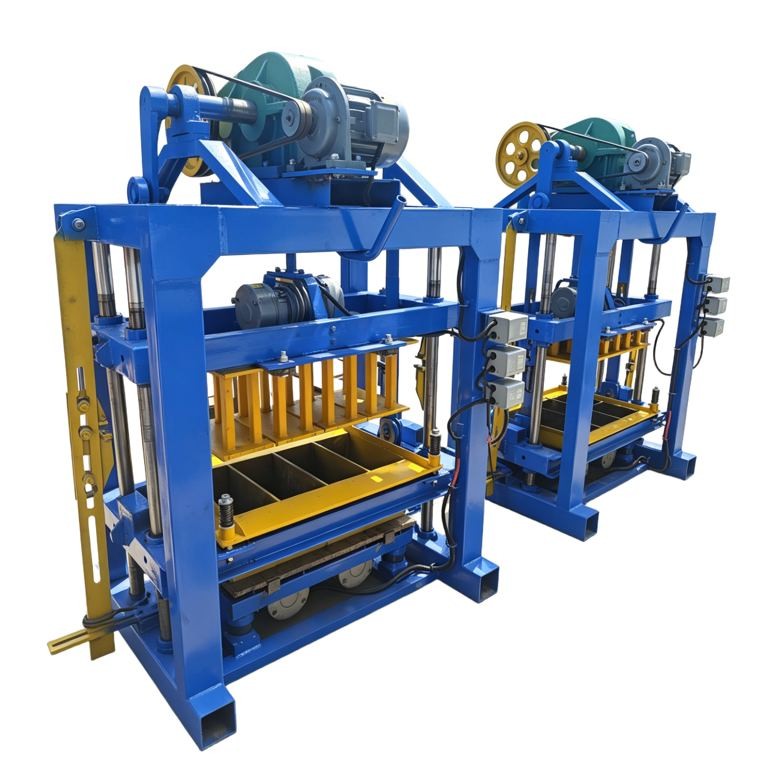

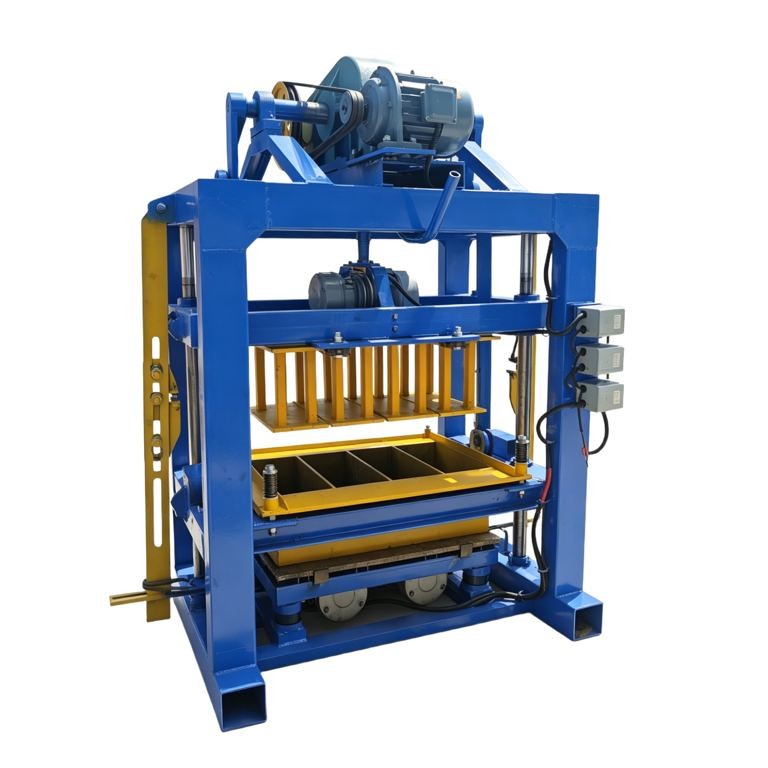

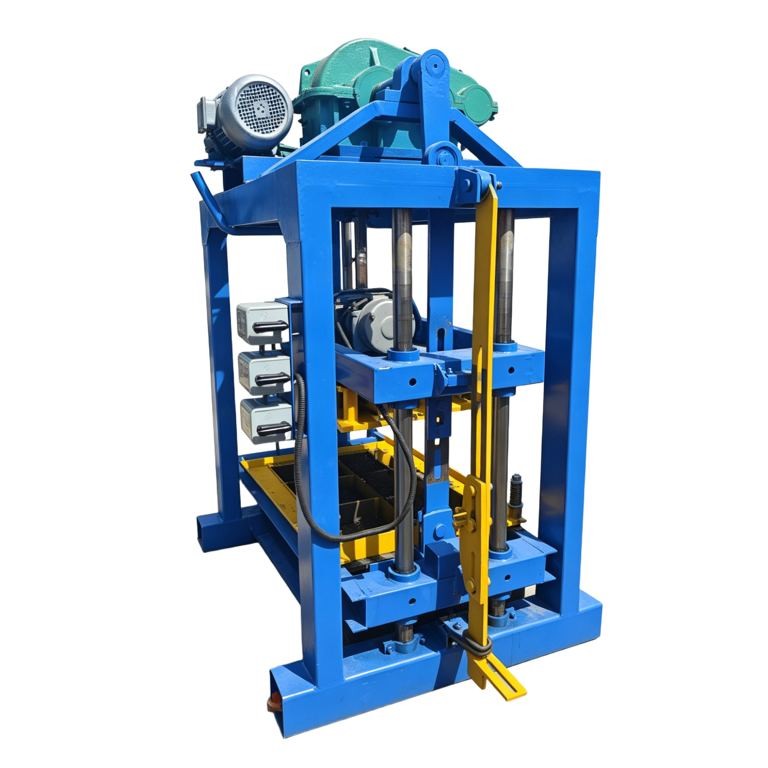

EX4-40 block making machine

Exmork EX4-40 block making machine can produce different sizes of hollow blocks, solid bricks, interlocking pavers, hourdis, habiterra block by changing molds

1. Production capacity:

Block size	Number of blocks produced at a time	8 hours Production capacity
8 inches: 400-200-200mm	4	2880
6 inches: 400-150-200mm	5	3600
4 inches: 400-100-200mm	7	5040
225-112.5-80mm curved brick	12	8640
200-160-80mm I-shaped brick	8	5760

2. Introduction:

This machine mainly uses three-phase electricity as power. But exmork can also produce single-phase power supply machines.The production cycle of this machine is 40 seconds, and the pallet size used is 850-550-20mm.The machine mold is designed according to the shape and size provided by the customer. The machine can produce hollow bricks, solid bricks, floor bricks, pavement bricks, curbstones and special-shaped bricks of different sizes by changing the mold.

3. Design of blocks, interlocking paving bricks, and curbstones for reference:

4. Technical Information

Model No.	EX4-40
Forming Cycle	40 Second
Vibration Frequency	4200-4800r/min
Vibration Force	35-45KN
Pallet Size	850-550-20mm
Total Power	8.8KW
Workers	2-5 workers
Workshop Size (Min.)	10m Length, 4m Width, 4m Height
Block Machine Size	1500mm(L)-1250mm(W)-2180mm(H)
Host Block Machine Weight	1100 KGS
JQ350 Mixer Capacity	350L
Generator	30KW
