EX4-30 concrete block machine

Exmork EX4-30 hydraulic concrete block making machine can work with both diesel engine or electricity and it can produce different sizes of hollow blocks, solid bricks, interlocking pavers, hourdis, habiterra block by changing molds.


1. Production capacity:

Block size

Number of blocks   produced at a time

8 hours

Production capacity

8 inches: 400-200-200mm

4

3840

6 inches: 400-150-200mm

5

4800

4 inches: 400-100-200mm

7

6720

225-112.5-80mm

curved brick

12

11520

200-160-80mm

I-shaped brick

8

7680

2. Introduction:

This machine can use diesel power or three-phase electricity as power. The production cycle of this machine is 30 seconds, and the pallet size used is 850-550-20mm.The machine mold is produced according to the shape and size provided by the customer. The machine can produce hollow bricks, solid bricks, floor bricks, pavement bricks, curbstones and special-shaped bricks of different sizes by changing the mold. This machine can also produce colored pavement bricks by manually spreading paint.

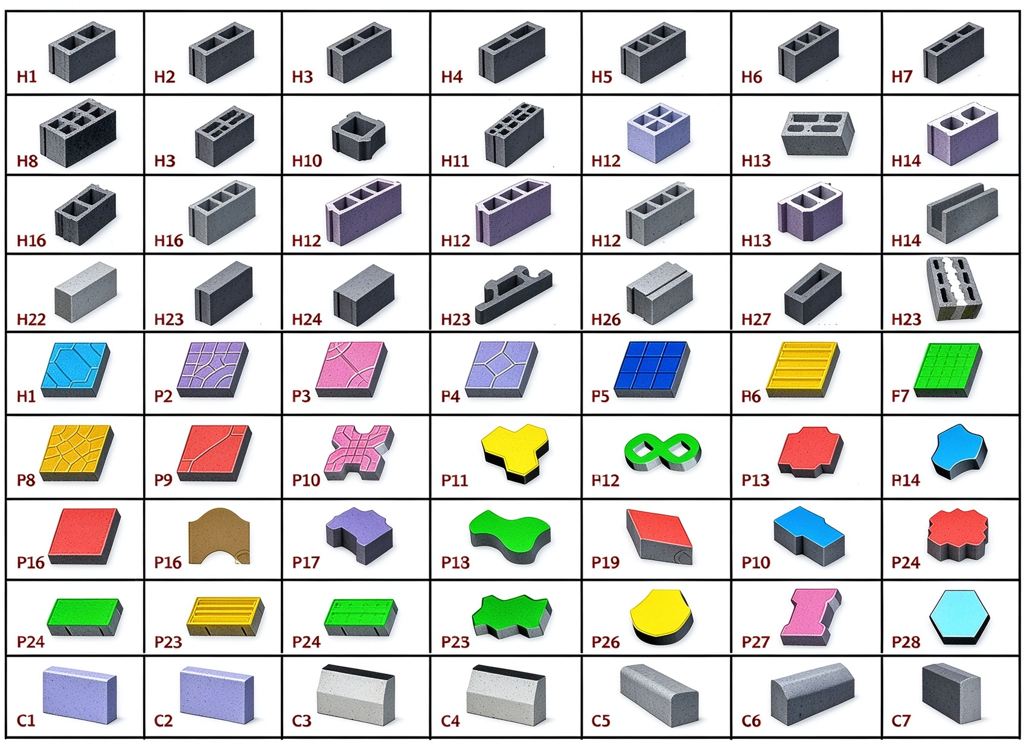

3. Design of blocks, interlocking paving bricks, and curbstones for reference:

exmork (6).jpg

4. Technical Information

Model No.:

EX4-30 (It   have diesel engine type and

electricity   type)

Forming Cycle:

30 Second

Vibration Frequency:

4200-4800r/min

Vibration Force:

45-50KN

Pallet Size:

850-550-20mm

Total Power:

22hp diesel   engine

Workers:

3-4 workers

Pressure:

18-21mpa

Block Machine Size:

1650mm(L)-1200mm(W)-2250mm(H)

(Host machine)

1000mm-1000mm-1300mm

(hydraulic   station)

Host Block   Machine Weight:

1600 KGS

JQ350 Mixer Capacity:

350L

Diesel engine oil consumption:

2.5-3L diesel oil per hour
