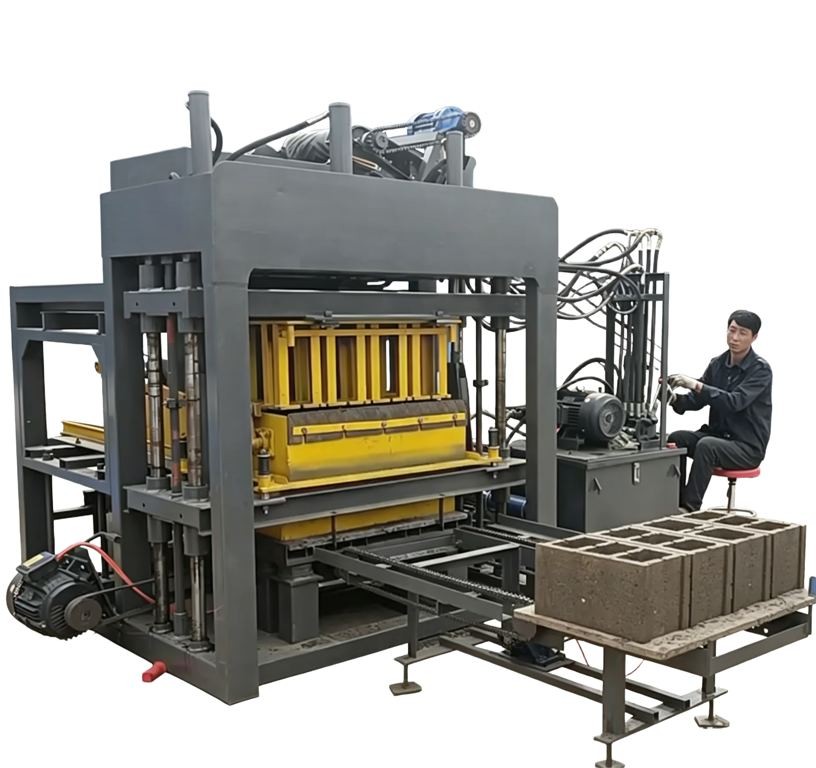

The EX4-18M manual hydraulic block making machine is an economical and practical small concrete block forming equipment. The whole machine adopts thickened steel structure, ensuring stable operation and long service life. This machine adopts manual hydraulic control to realize accurate pressing and molding, equipped with a high-frequency vibration system to ensure high density and smooth finished block appearance. By replacing different molds, it can mass-produce various non-fired bricks, including hollow blocks, solid bricks, colored paving bricks and slope protection bricks. With no complicated automatic configuration required, simple operation, low failure rate and low investment cost, it is very suitable for small and medium building material factories, rural brick factories and on-site construction block production. It is the ideal equipment for small-scale brick production projects.
The EX4-18M is a manual hydraulic block making machine. It controls the main machine by operating hydraulic valves to mould various concrete blocks. It can produce hollow blocks, solid blocks, paving bricks and other concrete products. Combining hydraulic driving and vibration forming technology, this machine has a compact structure, simple intuitive operation and stable moulding performance. It is well suited for small & medium building material factories and on-site block production for construction projects.
Manual hydraulic valve control; pressing process is visible and adjustable
Hydraulic pressure plus vibration moulding ensures high block density
Interchangeable moulds to manufacture hollow blocks, solid blocks and paving bricks
Heavy-duty steel main frame, high strength and long service life
Simple maintenance, fit for small and medium production lines
Concrete hollow blocks
Concrete solid blocks
Paving bricks / colored pavement bricks
Small building material processing plants
On-site block production for engineering projects
表格
| Item | Parameter |
|---|---|
| Model | EX4-18M |
| Forming Cycle | 15-18 seconds |
| Vibration Frequency | 4200-4800 r/min |
| Vibration Force | 45-60KN |
| Pressure | 15-21MPa |
| Pallet Size | 880×550×20mm |
| Total Power | Hydraulic station motor:11kW; Vibration motor:5.5kW |
| Required Operators | 3-5 workers |
| Minimum Workshop Dimension | 15m(L) × 4m(W) × 4m(H) |
| Overall Machine Dimension | 3900×2250×2550mm |
| Main Machine Weight | Approx. 3800KGS |
| JS500 Mixer Capacity | 500L, mixes one bag of 50kg cement per batch |
| Required Generator | 100kW |

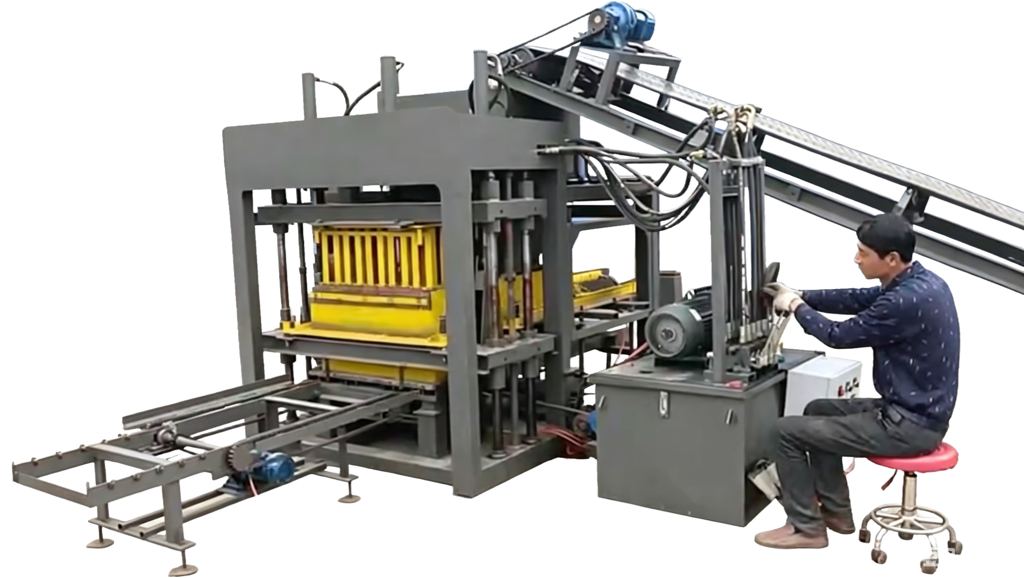

The EX4-18M manual hydraulic block making machine adopts hydraulic valve operation to control pressing, paired with vibration system to finish concrete block forming. The robust mainframe delivers stable working pressure and can produce concrete blocks of multiple specifications. Matched with JS500 concrete mixer, it forms a complete small block production line to satisfy production demands of medium and small brick manufacturers.
Conveyor & feeding system
JS500 concrete mixer
Moulds of different sizes
Generator set
