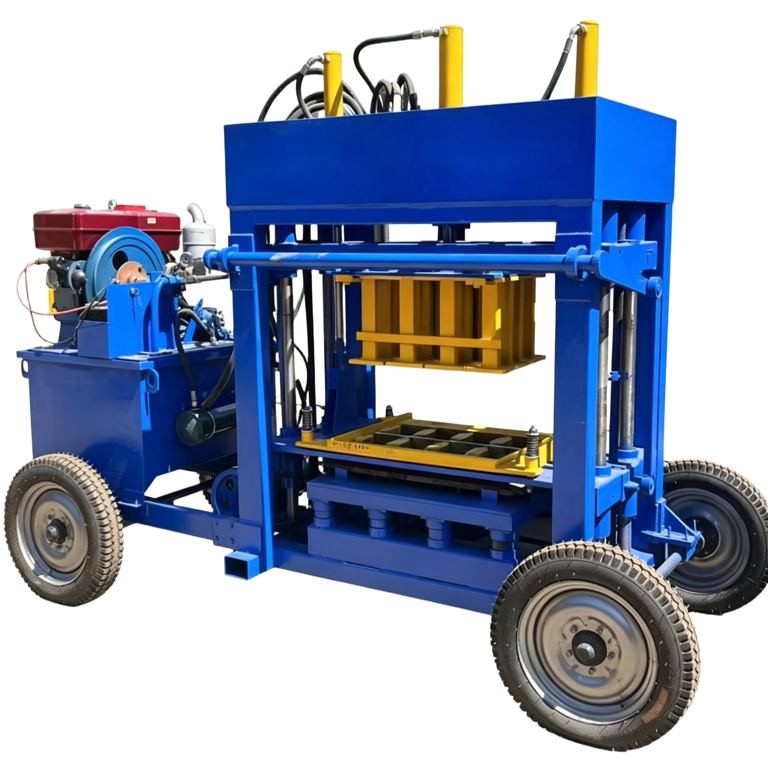

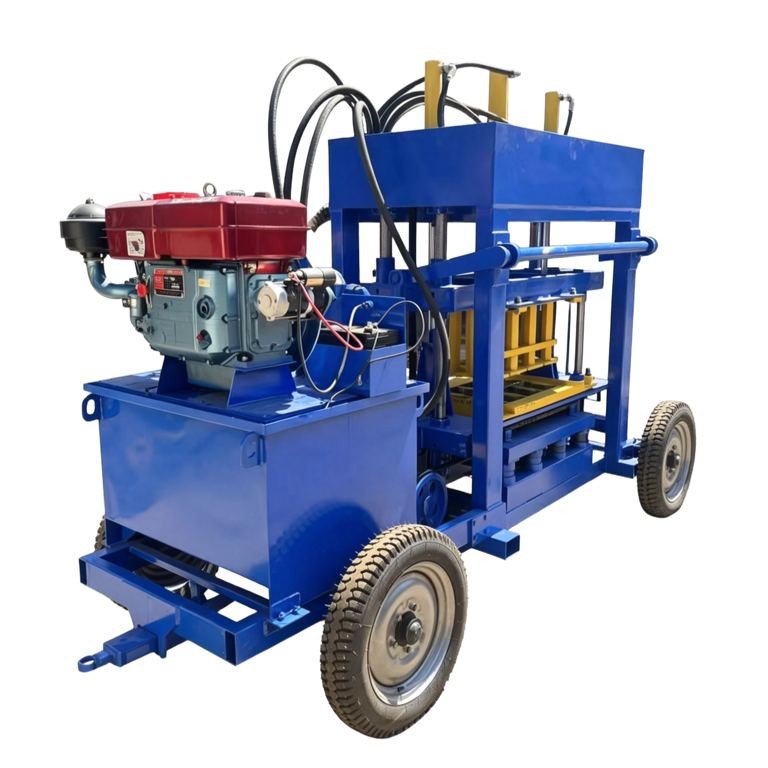

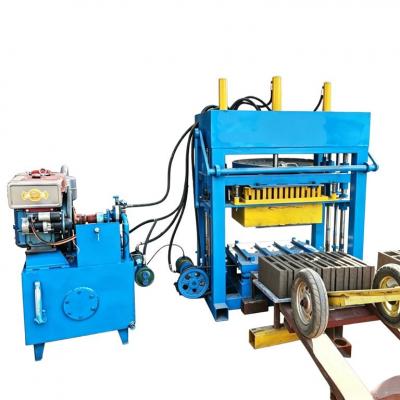

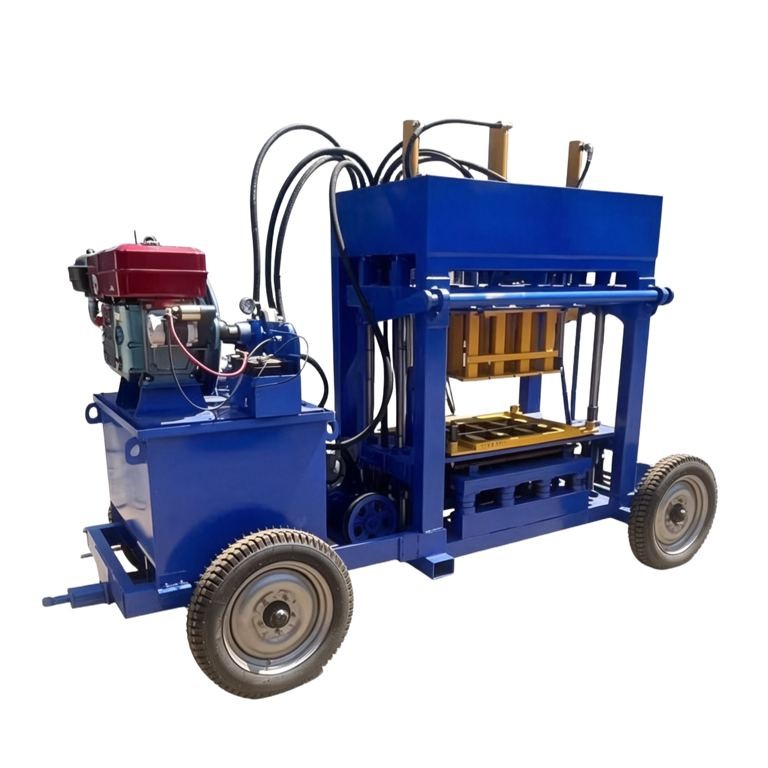

EX4-30 concrete block machine with wheels

EX4-30 concrete block machine with wheels

Exmork EX4-30 hydraulic concrete block machine supports dual power supply: diesel engine drive and three-phase electric drive. Equipped with interchangeable customized molds, it can produce various specifications of hollow blocks, solid bricks, interlocking paving bricks, hourdis blocks and habiterra blocks to meet diverse construction and landscaping production demands.

Product Overview

The EX4-30 block machine is a versatile semi-automatic concrete block forming equipment with dual power options: diesel engine drive and three-phase electric drive. It adopts integrated hydraulic pressing + high-frequency vibration molding technology, featuring a short 30-second forming cycle, stable output and easy operation. By changing customized molds, the machine can manufacture various concrete products including hollow blocks, solid bricks, interlocking paving bricks, curb stones and special-shaped blocks, widely applicable to municipal engineering, residential construction, garden landscaping and remote construction sites without stable power supply.

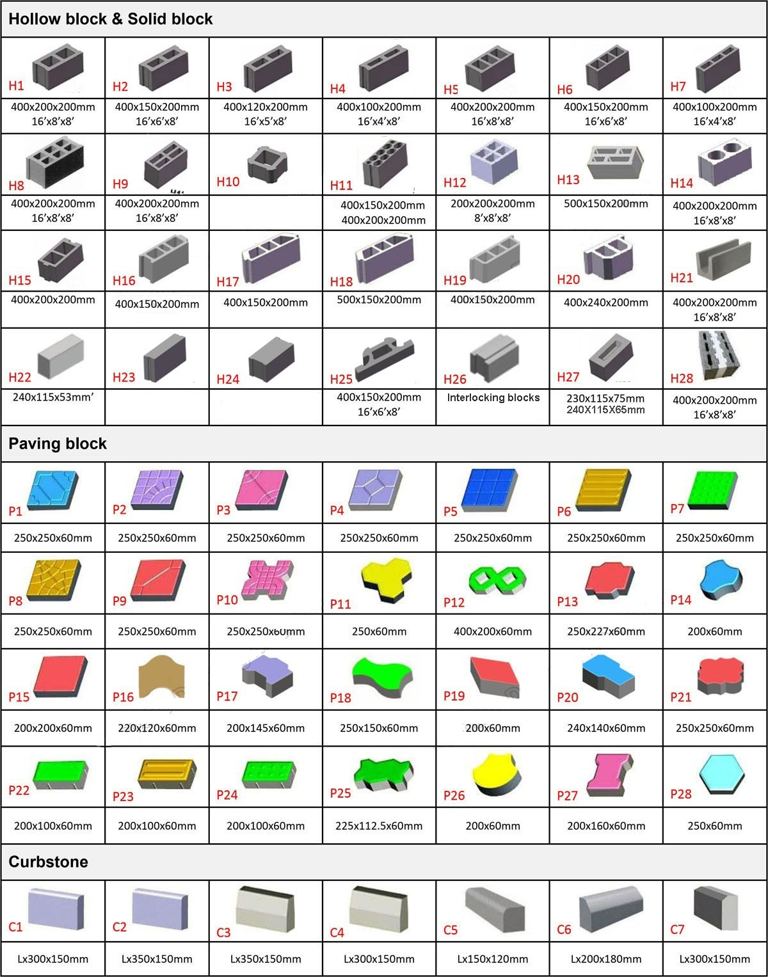

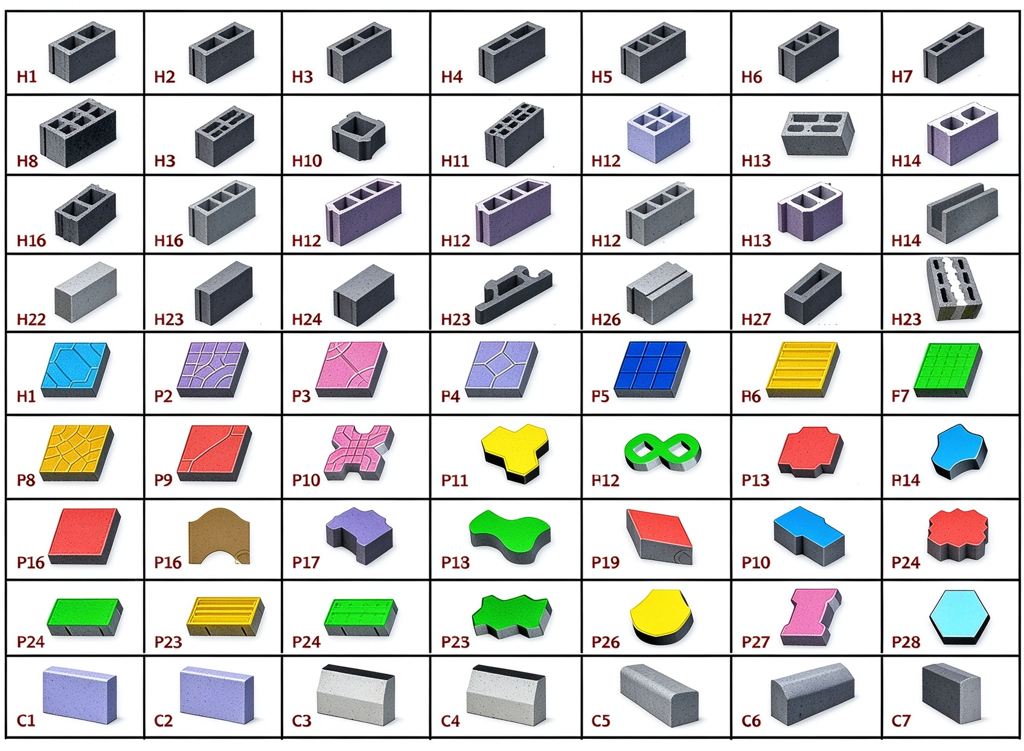

We can customize molds according to customers’ required block sizes and shapes. Color pavement bricks can be produced by manually spreading special color pigments on the material surface, meeting diverse decorative construction demands. Standard design drawings of blocks, interlocking pavers and curbstones are provided for customer reference.

Production Capacity

Block Specification (L×W×H)	Pieces per Molding Cycle	8-Hour Working Output
400×200×200mm 8-inch hollow block	4 pcs	3,840 pcs
400×150×200mm 6-inch hollow block	5 pcs	4,800 pcs
400×100×200mm 4-inch hollow block	7 pcs	6,720 pcs
225×112.5×80mm curved curb stone	12 pcs	11,520 pcs
200×160×80mm I-shaped interlocking paver	8 pcs	7,680 pcs

Core Technical Parameters

Item	Parameter Details
Model	EX4-30 (Diesel Version / Electric Version Optional)
Single Forming Cycle	30 seconds
Vibration Frequency	4200–4800 r/min
Vibration Compaction Force	45–50 KN
Standard Pallet Size	850×550×20 mm
Power (Diesel Model)	22 hp diesel engine
Required Operators	3–4 workers per shift
Hydraulic Molding Pressure	18–21 MPa
Main Machine Dimension	1650mm (L) × 1200mm (W) × 2250mm (H)
Hydraulic Station Dimension	1000mm × 1000mm × 1300mm
Main Machine Weight	1600 KGS
Supporting Mixer	JQ350 Pan Mixer, 350L capacity
Diesel Consumption	2.5–3 L per working hour

Product Advantages

Dual power design: Diesel and electric two versions for selection, perfectly suitable for suburban, mountainous and remote construction sites lacking power supply.
High-density molding: Combined hydraulic compression and high-frequency vibration makes finished blocks compact, smooth-surfaced and high-strength.
Multi-purpose with replaceable molds: One machine produces dozens of block types, greatly cutting your equipment investment cost.
Simple structure & easy maintenance: Low failure rate, operators can master operation skills quickly with short training.
Complete supporting configuration: Matched with JQ350 forced mixer to ensure even mixing of raw materials and consistent finished product quality.
